Futureproof speed and performance

Sunny Boy
Smart Energy 5.0 / 6.0

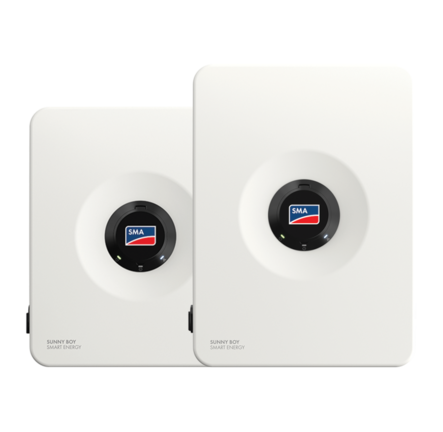

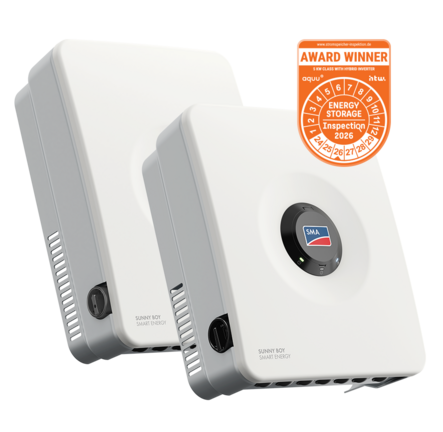

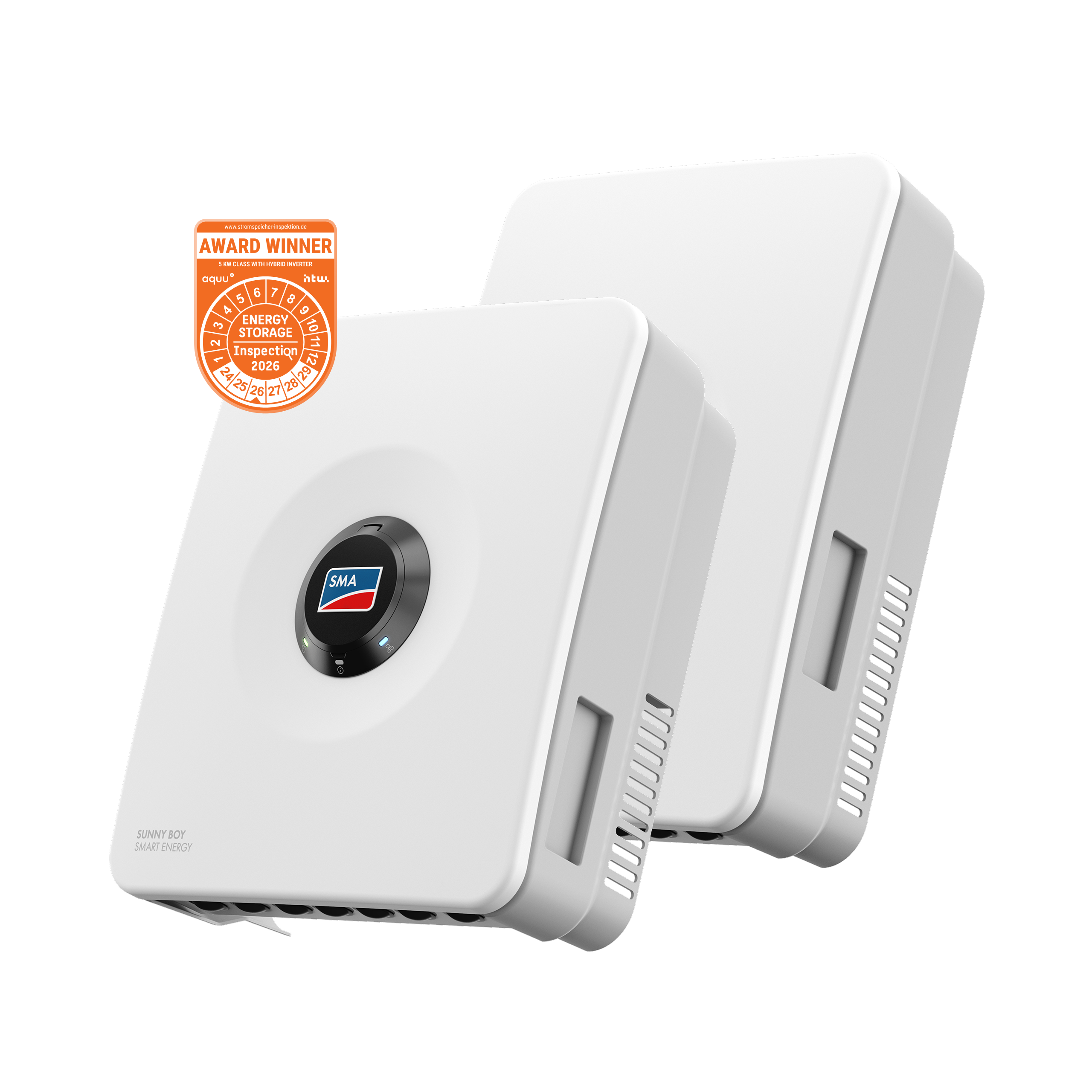

SMA Sunny Boy Smart Energy

A Two-in-One Solar Power Solution

NEW: The SMA Sunny Boy Smart Energy single-phase hybrid inverter combines solar power generation and battery storage in a single, efficient device, making it the ultimate solution for flexible energy use at home.

Reliable and Sustainable Energy Supply

As a PV and battery inverter in one, the Sunny Boy Smart Energy is your gateway to a complete home energy transformation.

Ease of Installation and Use: Designed for fast and easy installation. A powerful and flexible solution ensuring a simple user-friendly choice for homeowners.
Backup Power During Outages: SMA’s solution provides a dedicated DC sourced energy supply to a dedicated outlet, ensuring a power supply during power outages.

Maximising Solar Energy Potential

With three MPP trackers, the Sunny Boy Smart Energy optimises solar power production even on roofs with varying orientations.

High-Speed Battery Charging: Quickly stores excess solar energy for later use, maximising efficiency.
Flexible Energy Management: Seamlessly integrate heat pumps and smart energy systems for greater efficiency.

German-Engineered Quality

Built to the highest standards in Germany, the Sunny Boy Smart Energy guarantees durability, performance, and reliability.

By reducing reliance on grid electricity and conventional energy sources, this hybrid inverter empowers homeowners to lower energy costs and embrace sustainability.

More benefits

Unmatched flexibility

Three MPP trackers for flexible roof layouts
Low startup voltage – 66V
Integrated secure power supply for selected loads
Optional SMA Backup Home solution for full-home backup

Maximum energy yields

Rapid charging of connected batteries
PV system oversizing for higher energy yields
Integrated yield optimization with SMA ShadeFix

Easy installation, fast commissioning

SMA Easy Lock for effortlessly opening and closing the cover
Simplified step-by-step commissioning via the SMA 360° app

Enhanced energy storage

Compatible with SMA Home Storage battery
Compatible with high-voltage batteries from major manufacturers

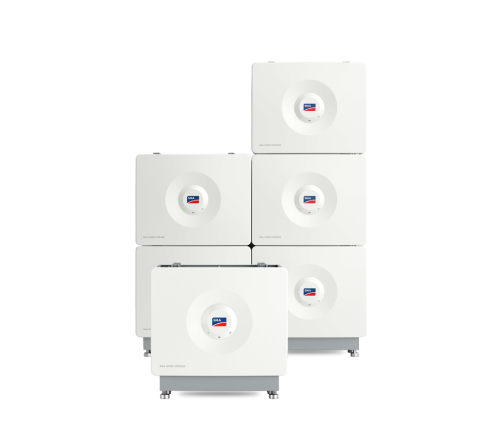

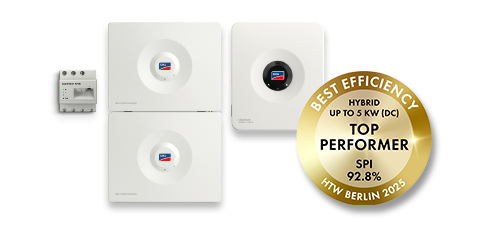

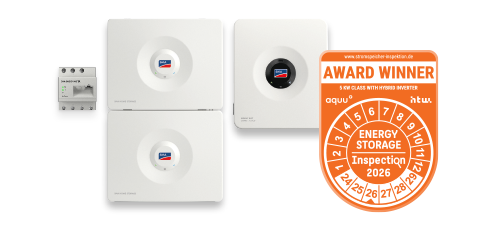

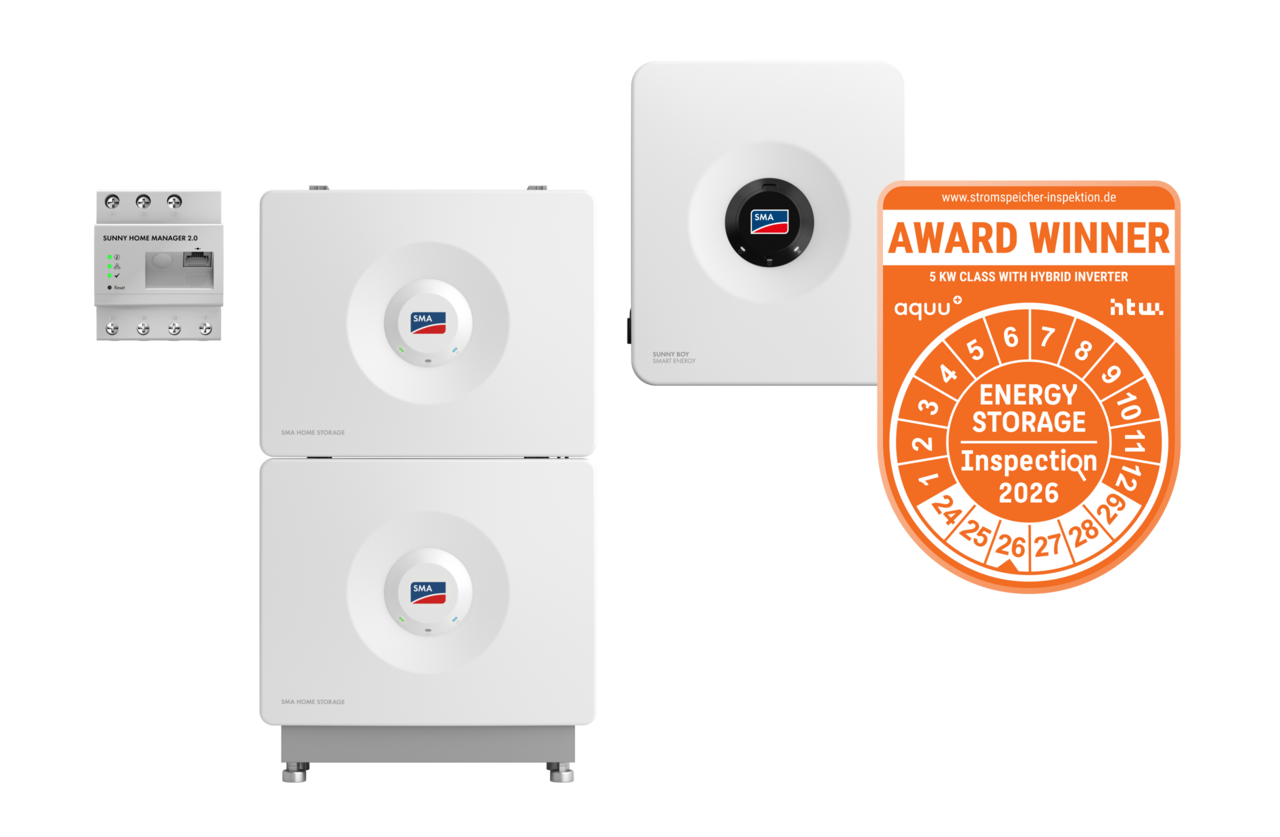

SMA Home Storage

In combination with the SMA Home Storage battery, the Sunny Boy Smart Energy offers even more flexibility and enhanced energy storage. The SMA Home Storage will soon be available to the Australian market – stay tuned for updates!

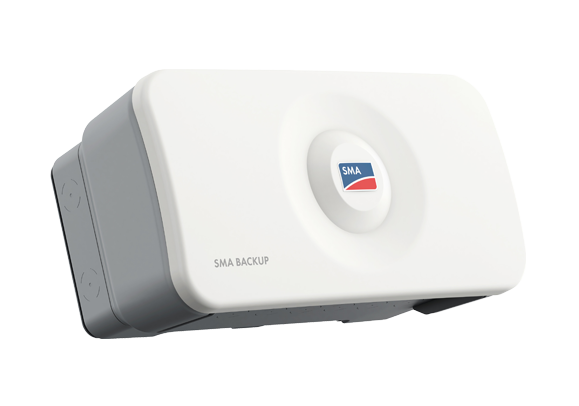

SMA Backup

The SMA Backup solution for installations with the Sunny Boy Smart Energy ensures reliable power supply, even during outages. Thanks to the automatic transition between on- and off-grid mode, households remain reliably powered at all times.

Available as an external box for single-phase systems (SMA Backup 1P), it reliably supplies all household appliances. With an exceptionally low standby consumption, it combines efficiency and security to effortlessly bridge unexpected power outages with the help of the sun.

The SMA Backup Home will soon be available to the Australian market – stay tuned for updates!

Sunny Boy Smart Energy

FAQ

In what sizes is the Sunny Boy Smart Energy available?

The inverter is available in the following sizes: 5.0 / 6.0 kVA

What is the duration of the warranty for the Sunny Boy Smart Energy?

The duration of the standard warranty for the Sunny Boy Smart Energy X is 5 years. The owner can get 5 year’s extra warranty by registering his inverter in the Online Service Center. More information can be found here.

5 years extended warranty

Can the warranty for the Sunny Boy Smart Energy be extended?

The owner can get 5 year’s extra warranty by registering his inverter in the Online Service Center. Warranty can further be extended up to 20 years. More information can be found here.

Up to 20 years extended warranty

Is east–west alignment possible with the Sunny Boy Smart Energy?

Yes. The three integrated MPP trackers also allow configurations like this with the Sunny Boy Smart Energy.

Is a surge protection device integrated?

A Surge protection device can be optionally connected on the DC side. They are offered as type 1+2 and type 2 as accessories from 3rd party companies.

Can I operate multiple Sunny Boy Smart Energy devices in a single system?

You can operate multiple Sunny Boy Smart Energy inverters in a single system. It is not possible however to use multiple Sunny Boy Smart Energy inverters in one system with the Sunny Home Manager.

Is it possible to add further PV inverters to the system?

Yes, this is possible. Furthermore the Sunny Boy Smart Energy is then able to charge from both DC and AC side.

What is the maximum capacity of the SPS (Secured Power Supply) functionality?

The maximum capacity will be that of a normal outlet: 16 A at 230 V which results in max. 3680 W.

Are there capacity limits (minimum and maximum) for SMA battery? and for other battery suppliers?

The capacity limits are coming from the maximal voltage of the battery system. The modules will be connected in series and with each battery module the voltage will increase. Due to the voltage limitation of 500V, it is possible to connect maximum 4 SMA Home Storage modules. For batteries from other manufacturers, it is important to check the maximal voltage of the battery system.

Are the backup functionality and the Secure Power functionality mutually exclusive?

Yes, they are, because they use the same output.

Can the backup functionality and the Secure Power functionality be installed later?

Yes, both can be installed later.
